Access Point | wi-fI 5

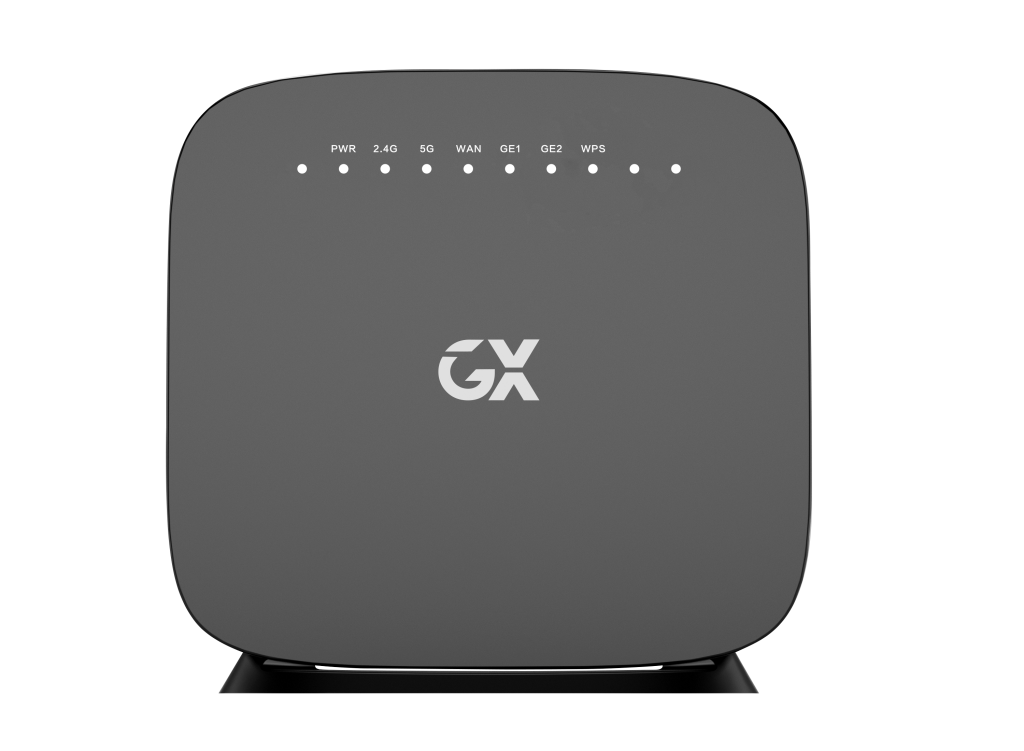

Titanium T30AP

This Dual-Band Access Point / Router provides up to 1200 Mbps wireless speed via 5th Generation Wi-Fi. Featuring a premium design with two internal antennas for excellent omni-directional coverage, the unit also includes Optimized Band Steering for efficient device connection. Connectivity is secured with 2x LAN ports and 1x WAN port.

The Premium Router with Intelligent Speed.
The Premium Router with Intelligent Speed.
The Premium Router with Intelligent Speed.
The Premium Router with Intelligent Speed.
Recycled ABS

Enjoy Ultra-fast speeds

Mbps*
0

Multiple SSIDs

Device can broadcast several independent Wi-Fi networks from a single unit. This is essential for creating a separate, secure Guest Network that segments visitor traffic from your main private network.

Optimized Coverage:

Sleek design with internal antennas for omni-directional Wi-Fi.
ePA Boost

Engineered with an advanced power amplifier for next-level Wi-Fi performance

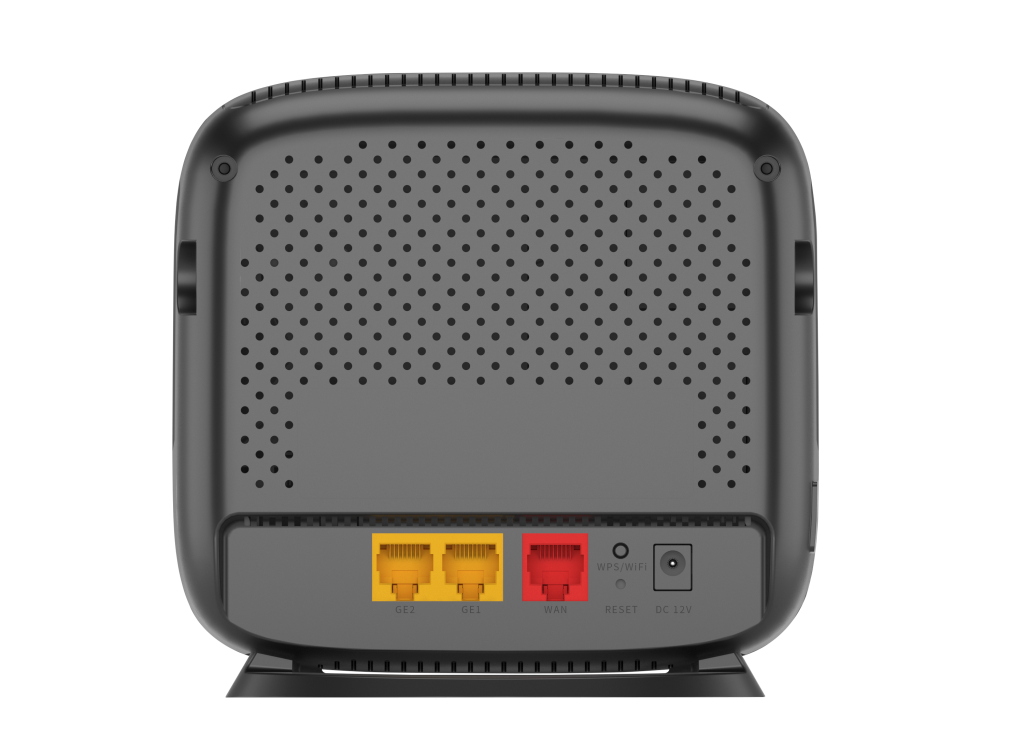

2x LAN Ports
1x Power connector
1x WAN Port
Create a better network space

With congestion-free WI-Fi 6 network

Quick Highlights

View Full Specifications

Multiple SSIDs

Broadcast several separate Wi-Fi networks for easy segmentation of user groups (staff, guests, IoT).

Secured Guest Wi-Fi

Creates an isolated network for visitors, keeping your main private network secured.

Smart Band steering

Intelligent guidance for your devices to steer to preferred band for best and uninterrupted connection

WPA3 Transition Mode

Supports the latest security protocol while maintaining compatibility with older Wi-Fi 5 devices.

VLAN  Tagging Support

Enables advanced network segmentation for complex environments and secure isolation.

Traffic Monitoring

Provides real-time and historical data on network usage to identify bottlenecks and optimize performance.

WiFi 6 unlocks potential

Advanced WPA3 Security

Spatial Bandwidth usage

Intelligent Band Steering

Smoother streaming, quicker downloads, and a truly seamless connection for every device, every time

Enjoy a safer and more secure connection. WPA3 protects your network from modern cyber-attacks, giving you peace of mind

Congestion free network with simultaneous multi-device data transmission, providing low latency via OFDMA & MU-MIMO

Connect all your devices, even those which are far away from your WiFi device with efficient use of 2.4 and 5 GHz bands

Unlock true potential

Why WiFi 6?

Watch video Watch video
Explore specs on Datasheet

Model No. Titanium 2022

Technical Specifications

Dimensions
135mm(L)×110mm(W)×28mm(H)

Weight
< 500 g

Power supply voltage
12 Vdc ± 5%, 1.5A

Power consumption
typ. 12.5W

Operating temperature
0 – 50 °C

Storage temperature
0 – 70 °C

SoC CHIPSET
RTL9607C

Voice SoC
SI32192

FLASH
128MB

RAM
128MB

Wi-Fi (2.4 GHz)
MT7592

Wi-Fi (5.0 GHz)
MT7613

ANTENNA
5 dBi Dual antenna

PORTS
4x Gigabit Ethernet (GE) Ports
2x FXS Voice interface/POTS
1x Power connector

BUTTONS
Power ON/OFF, Reset

  • Input Bandwidth Control
  • IEEE 802.1p/Q /Q and DSCP Remarking
  • One leaky bucket (APR) to constrain the average rate of each queue
  • Strict Priority and Weighted Fair Queuing (WFQ) to provide minimum bandwidth
  • Supports per-port Ingress Bandwidth Control and Egress Bandwidth Control
  • Compliant with IEEE 802.3 (u & az) Clause 40 (1000/100/10BASE-T)
  • Compliant with SFF-8472
  • Compliant with 802.1 q/p VLANs
  • LED indicators for link & activity

802.11n

  • Throughput > 300Mbps at 40MHz
  • Tx Freq range (MHz) 2412.0-2472.0
  • Rx Freq range (MHz) 2412.0-2472.0
  • Dual Antenna 2×2 MIMO, 5dBi
  • Compliant with IEEE 802.11n, 2.4GHz, 20/40MHz bandwidth
  • Receiving sensitivity -68dBm

802.11AC

  • Throughput > 550 Mbps
  • Compliant with IEEE 802.11a/n/ac, 5Ghz, upto 80 Mhz bandwidth
  • EVM (11ac MCS9) : < -32dB
  • CODEC: G.711, G.729(A/B)
  • RFC 3966: The Tel URI For Telephone Number
  • RFC 3581: An Extension to SIP for Symmetric
  • Support Call ID / Call waiting / Call forwarding / Call Transfer / 3-way Calling and T.38 FAX
  • Support echo cancellation. Compliant with G.165, G.168
  • TR-69/TR-0369 supported
  • Advanced GUI (web interface management)
  • Support for L2 switch and L3 routing gateway with port forwarding
  • PPPoE | DHCP | Static IP | Factory restore | Protocol port 80 enable/disable
  • FCC and CCC supported
  • IPv4, IPv6 and IPv4/IPv6 Dual-Stack
  • DHCP server, NAT/NAPT and firewall
  • Port forwarding & MAC address filtering
  • Supports Application Layer Gateways (ALG)
  • Ping, trace route & counter configuration
  • WEP, WPA / WPA2, WPA-PSK/WPA2-PSK encryption
Download Datasheet

Inside box
you get

1x

Titanium T21

1x

RJ-45 Cable

12V, 1.5A

Power Adaptor
