Dual band | wi-fI 5

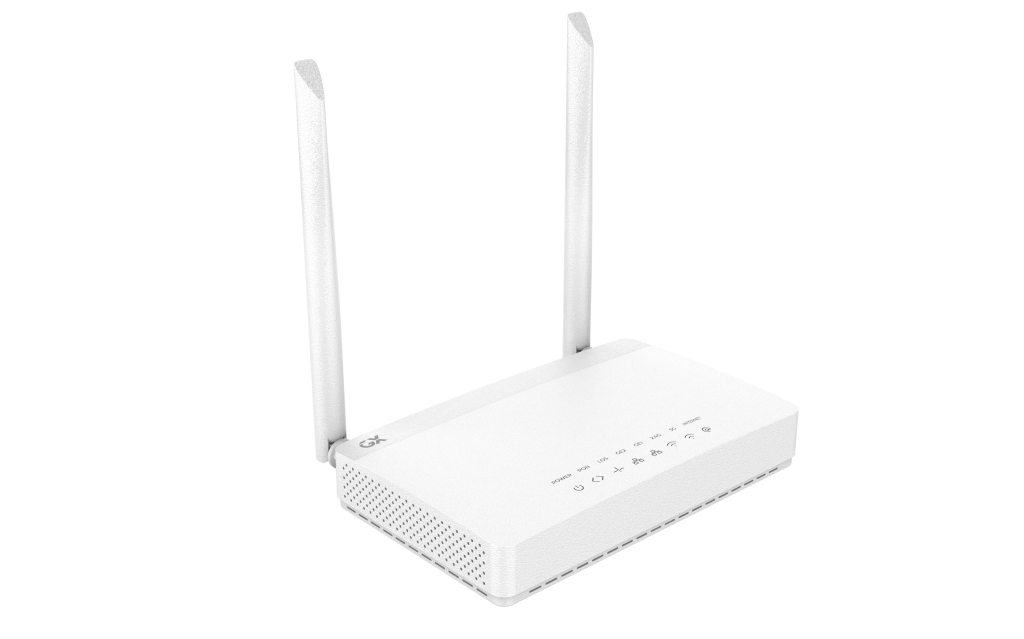

Titanium E20

This integrated Home Gateway Unit (HGU) provides 1200 Mbps concurrent dual-band Wi-Fi (802.11ac and 802.11n) for optimal wireless performance. Designed for fiber networks, it features a GPON interface with high-speed link capabilities (up to $2.488 \text{ Gbps}$) and includes two Gigabit Ethernet ports, ensuring reliable, high-throughput service delivery.

Quality Throughput for the Connected Home.
Quality Throughput for the Connected Home.
Quality Throughput for the Connected Home.
Quality Throughput for the Connected Home.
Recycled ABS

Enjoy Ultra-fast speeds

Mbps*
0

Dedicated Performance Bands

The 5 GHz band supports high-throughput applications (streaming/gaming), while the 2.4 GHz band provides reliable, extended coverage and superior wall penetration

Enhanced Range

Beamforming concentrates signal energy, dramatically improving range and delivering a stronger, more reliable connection across your home.
ePA Boost

Engineered with an advanced power amplifier for next-level Wi-Fi performance

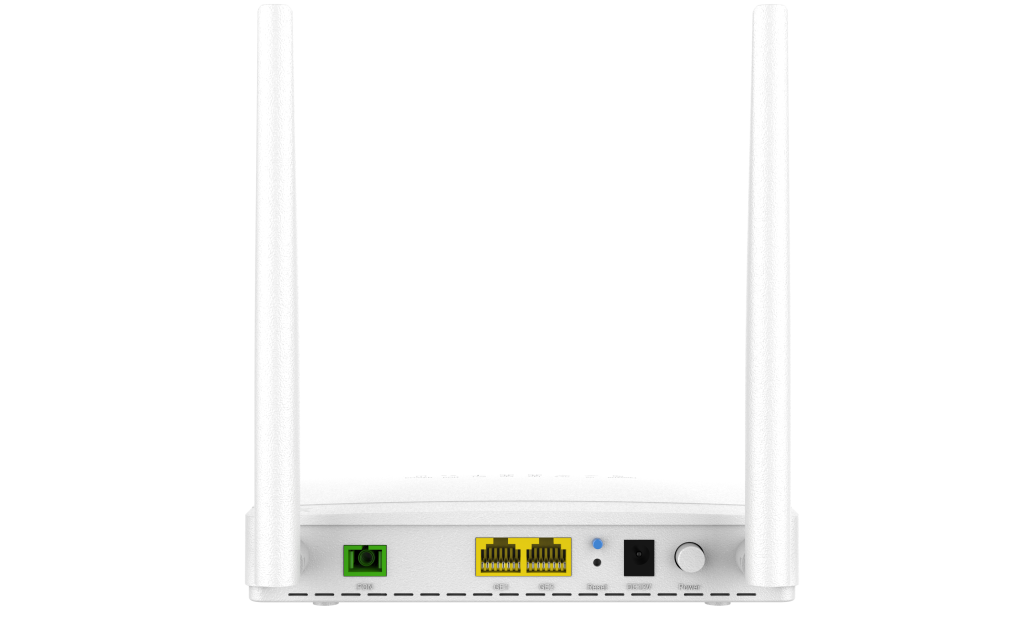

2x GE Ports
1x  Power connector
Create a better network space

With congestion-free WI-Fi 6 network

Quick Highlights

View Full Specifications

 Downlink MU-MIMO

Sends data simultaneously to multiple devices for efficient network traffic handling and improved capacity.

Explicit Beamforming

Focuses the Wi-Fi signal toward connected devices for enhanced range and stronger signal strength.

5 GHz Band

Operates on the less congested 5 GHz frequency to deliver maximum wireless throughput

Wider Channel  Support

Supports 80 MHz (and optional 160 MHz) channel bandwidth to increase data transfer rates dramatically

256-QAM  Modulation

Uses higher-density data encoding to transmit more bits per symbol, resulting in faster raw speeds

Concurrent Dual-Band

Simultaneous 5 GHz and 2.4 GHz operation for optimal device compatibility and performance

WiFi 6 unlocks potential

Advanced WPA3 Security

Spatial Bandwidth usage

Intelligent Band Steering

Smoother streaming, quicker downloads, and a truly seamless connection for every device, every time

Enjoy a safer and more secure connection. WPA3 protects your network from modern cyber-attacks, giving you peace of mind

Congestion free network with simultaneous multi-device data transmission, providing low latency via OFDMA & MU-MIMO

Connect all your devices, even those which are far away from your WiFi device with efficient use of 2.4 and 5 GHz bands

Unlock true potential

Why WiFi 6?

Watch video Watch video
Explore specs on Datasheet

Model No. Earth 2022

Technical Specifications

Dimensions
135mm(L)×110mm(W)×28mm(H)

Weight
<500 g

Power supply voltage
12 Vdc ± 5%, 1.5A

Power consumption
typ. 12.5W

Operating temperature
0 – 50 °C

Storage temperature
0 – 70 °C

SoC CHIPSET
RTL9607C

FLASH
256 MB

RAM
256 MB

Wi-Fi (2.4 GHz)
MT7592

Wi-Fi (5.0 GHz)
MT7613

ANTENNA
5 dBi Dual antenna

PORTS
2x Gigabit Ethernet (GE)
1x Power connector

BUTTONS
Power ON/OFF, Reset

  • IEEE 802.1p/Q Q Bridging and DSCP Remarking
  • Supports per-port Ingress, Bandwidth Control and Egress Bandwidth Control
  • One leaky bucket (APR) to constraint average rate of each queue”
  • Priority Queue scheduling
  • Strict Priority and Weighted Fair Queuing (WFQ) to provide minimum bandwidth
  • Compliant with IEEE 802.3 (u & az) Clause 40 (1000/100/10BASE-T)
  • Compliant with SFF-8472
  • Compliant with 802.1 q/p VLANs
  • LED indicators for link & activity

802.11n

  • Throughput > 300Mbps at 40MHz
  • Compliant with IEEE 802.11n, 2.4GHz, 20/40MHz bandwidth
  • Receiving sensitivity -68dBm

802.11AC

  • Throughput > 550 Mbps
  • EVM (11ac MCS9) : < -32dB
  • TR-69/TR-0369 supported
  • Advanced GUI (web interface management)
  • FDA 21 CFR 10 4 0 . 10 / . 1 1 Class 1
  • PPPoE | DHCP | Static IP | Factory restore | Protocol port 80 enable/disable
  • FCC and CCC supported
  • IPv4, IPv6 and IPv4/IPv6 Dual-Stack
  • DHCP server, NAT/NAPT and firewall
  • Port forwarding & MAC address filtering
  • Supports Application Layer Gateways (ALG)
  • Ping, trace route & counter configuration
  • WEP, WPA / WPA2, WPA-PSK/WPA2-PSK encryption
Download Datasheet

Inside box
you get

1x

Titanium E20

1x

RJ-45 Cable

12V, 1A

Power Adaptor
