Dimensions
200mm(L)×160mm(W)×44.3mm(H)

Weight
540 g

Power supply voltage
12 V dc ± 5%, 2A

Power consumption
24W

Operating temperature
0 to 45 °C

Storage temperature
-40 to 70 °C

Relative humidity
10 to 90%, non-condensing

SoC CHIPSET : EN7529CT              FLASH : 512 MBit (4 Gbit)

DDR3: 512 MBit (4 Gbit)                  Wi-Fi (2.4 GHz): MT7976DAN

Wi-Fi (5.0 GHz): MT7916AN         MIMO: 2 T 2 R (2.4 GHz) | 3 T 3 R: 2 (5 GHz)

PORTS
4x Gigabit Ethernet (GE) Ports
1x USB Port (3.0)
1x FXS Voice interface/POTS
1x Power connector

BUTTONS
Wi-Fi, WPS, RESET, POWER ON/OFF

PLATFORMS
mayaOS powered by IOWRT
Linux OS

• WMM
• Bandwidth Control

• Compliant with ITU-T G.984
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
• SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711

• WEP, WPA / WPA2, WPA-PSK/WPA2-PSK encryption

WAN Type

• Dynamic IP
• Static IP
• PPPoE

DHCP

• Server, Client
• DHCP Client List
• Address Reservation

Port Forwarding

• Virtual Server
• Port Triggering
• UPnP, DMZ

VLAN

• 802.1Q tag VLAN
• VLAN transparent mode/VLAN translation mode/VLAN trunk mode
• Address Reservation

Access Control

• Parental Control
• Local Management Control
• Access Schedule
• Rule Management

• One RJ-11 FXS ports for connecting to analog telephones, Call forwarding
• Call waiting / call block
• 3 way conferenece call

• Local management control
• Host list
• Access schedule
• Remote Management

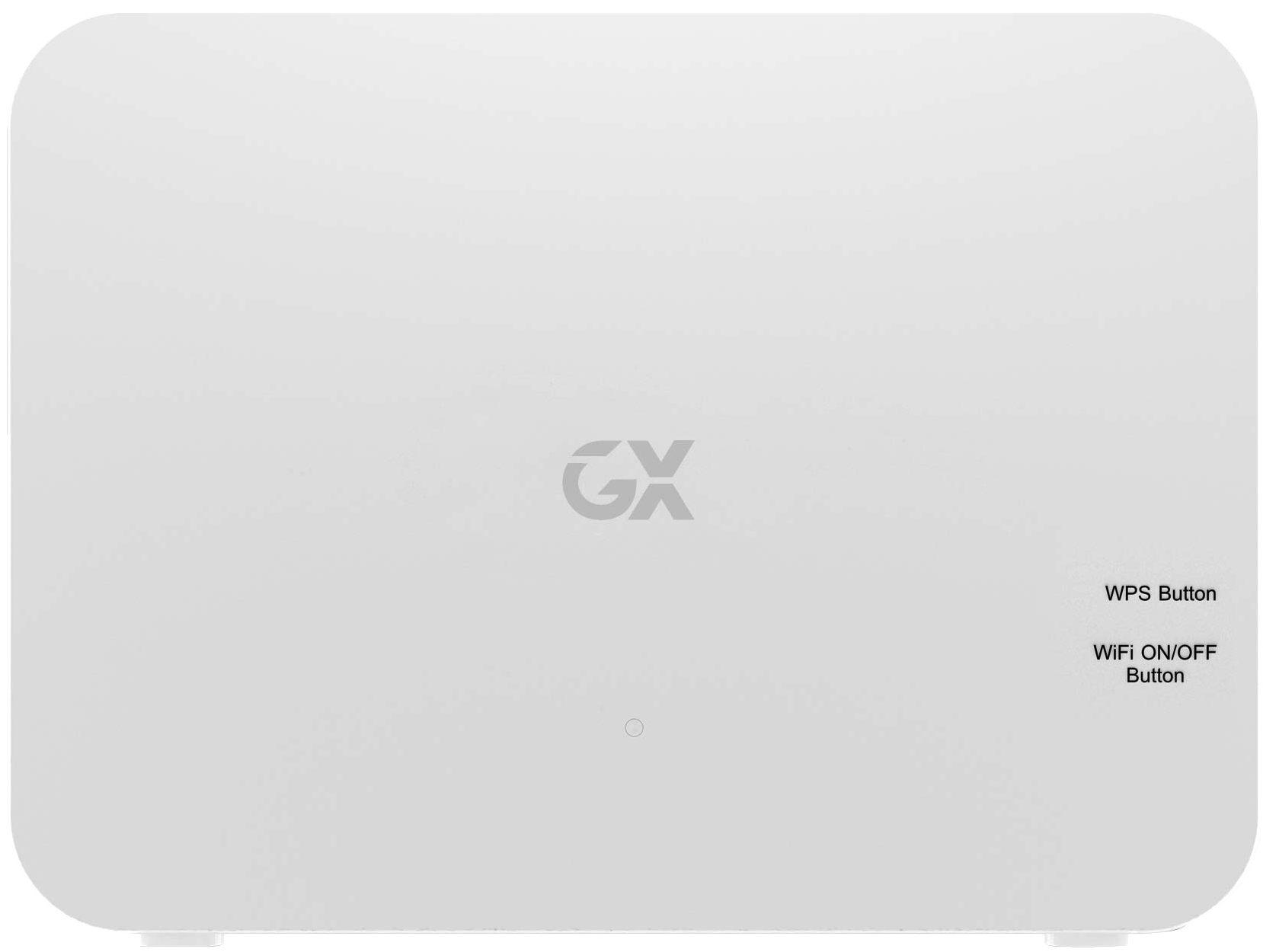

MOKSHA T41 PRO
*With the introduction of some components at the production level the WiFi signal strength can be optimized for greater reach and is utilized mostly in Indian markets due to the infrastructure needs.

Moksha T41
