Switch

Jupiter E08ZI

An industrial-grade managed PoE switch delivering Gigabit connectivity, high PoE power output, and reliable Layer-2 networking for secure and resilient deployments.

Powering Smart, Secure Network Connectivity
Powering Smart, Secure Network Connectivity
Powering Smart, Secure Network Connectivity
Powering Smart, Secure Network Connectivity
Recycled ABS

Enjoy Ultra-fast speeds

Mbps*
0

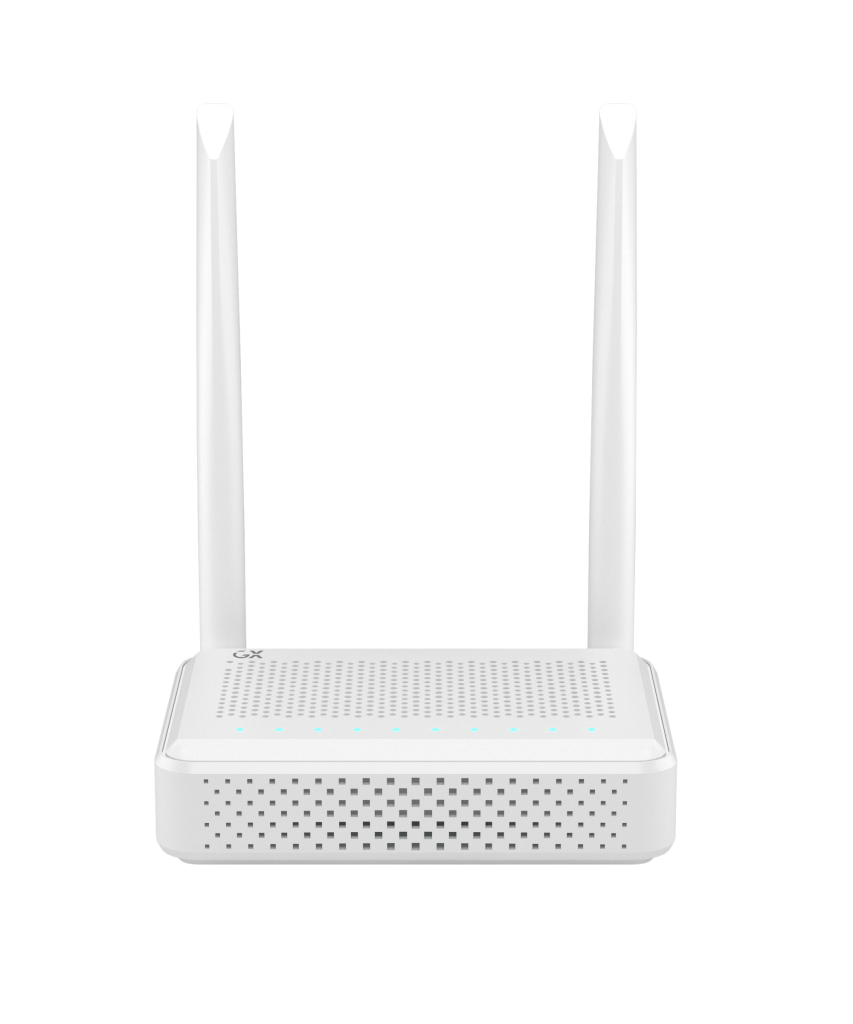

Reliable 2.4 GHz Coverage

Leverages the extended range of the 2.4 GHz band for reliable coverage and broad compatibility with all your devices.

Dependable Wi-Fi 4 (802.11N) Support

The proven wireless standard that ensures stable and reliable data transmission for your primary in-home internet experience
ePA Boost

Engineered with an advanced power amplifier for next-level Wi-Fi performance

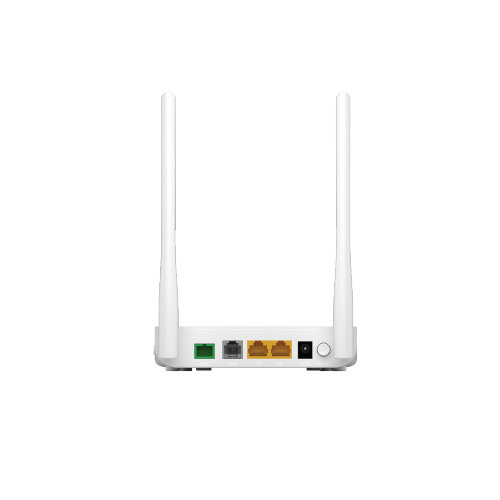

1x WPS switch
1x GPON Ports
1x FXS  Port
2x LAN Port
Create a better network space

With congestion-free WI-Fi 6 network

Quick Highlights

View Full Specifications

High-Density Gigabit Connectivity

Equipped with 8 Gigabit Ethernet PoE ports and 4× 1G SFP uplink slots, providing flexible access and fiber uplink options for industrial and enterprise networks.

Optimized Switching Capacity

Delivers up to 24 Gbps switching capacity with a 17.6 MPPS forwarding rate, ensuring reliable and high-speed data transmission.

Advanced Network  Security

Includes robust Layer-2 security features such as MAC-based access control, ACLs, DHCP Snooping, Dynamic ARP Inspection, and 802.1X authentication for secure network operations.

High-Power PoE  Delivery

Supports PoE with a total power budget of up to 180W, delivering up to 30W per port to efficiently power connected devices.

Broad Protocol &  Standards Support

Complies with key IEEE standards including 802.1Q (VLAN), 802.1w (RSTP), 802.1s (MSTP), and 802.3ad (LACP) for seamless interoperability.

Comprehensive Network Management

Supports Web UI, CLI (Console/Telnet/SSH), SNMP (v1/v2c/v3), RMON, system logs, and firmware upgrades, enabling easy monitoring and maintenance.



 Model No. Jupiter  E08ZI

Technical Specifications

Dimensions
145mm(L)×109mm(W)×62.3mm(H)

Weight
≤ 1.6Kg

Power supply voltage
48-57V | 200W | PoE-180W | Per-Port : 30W

Operating temperature
-40°C – 75 °C

Storage temperature
-40 °C to 80 °C

Operating humidity
5% – 90%, non-condensing

SoC CHIPSET
RTL8382MI

FORWARDING RATE
17.6 MPPS

SWITCH CAPACITY
24 Gbps

FLASH
256 Mbit

DRAM
1 Gbit DDR3 SDRAM

PORT
8x POE Ports
4x 1G SFP slots
1x RJ45 console Ports

MAC Table
Supports 8K

VLAN
Supports 4k

JUMBO FRAME
9216 Bytes

Protocols Supported:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.1p

Connector Type:
RJ45 (PoE), SFP slot, Console port

Interface:
MDI/MDI-X

Data Rates:
10 Mbps, 100 Mbps, and 1000 Mbps

Duplex Modes:
Half duplex, Full duplex, and Self-Negotiated

Max. transmission distance
100 m

Queuing

  • DSCP to DSCP mapping
  • DSCP to DP mapping
  • DSCP to Queue mapping
  • COS to DP mapping
  • DSCP to DP mapping

Policy Map Stream

  • Based on VLAN
  • Based on COS/DSCP
  • Aggregate Policy Map
  • Ingress Policy Map

Policing

  • CAR Stream Shaping(leak algorithm)
  • Ingress Policing
  • VLAN(802.1Q 4K)
  • Access/ Trunk/ Hybrid
  • Private VLAN
  • VLAN Filter
  • MAC-based VLAN
  • Protocol-based VLAN
  • QinQ/ Selective-QinQ/ Flexible QinQ
  • Guest VLAN

Port Config

  • Bandwidth Control
  • Flow Control
  • EFM OAM(802.3ah)
  • Storm Control
  • ULDP/Cisco UDLD

ARP

  • Static ARP
  • ARP Scanning Prevention
  • ARP Spoofing Prevention
  • ARP Guard
  • Gratuitous ARP

Basic Management

  • Console/Telnet/SSH
  • Http/Https, SSL/TLS
  • Software/Hardware watchdog
  • SNMP(v1/v2c/v3), SNMP Trap
  • SNTP/NTP

MAC Address Table

  • MAC Address Size
  • MAC Aging Time
  • MAC Filter

IPv6 Features

  • SNMP over IPv6 Support
  • HTTP over IPv6 Support
  • SSH over IPv6 Support
  • DNS over IPv6 Support
  • IPv6 ping/traceroute Support

IPv6 Unicast Routing

  • Static Route

ICMP

  • Anti-ICMP Attack
  • ICMP Rate Limit
  • ICMP Unreachable Drop

DHCP

  • DHCP Server
  • DHCP Client/BOOTP
  • DHCP Relay
  • DHCP Option 82/43/60/61/67

DHCPv6

  • DHCPv6 Server
  • DHCPv6 Snooping
  • IPv6 SAVI
  • Security RA

IPv6 Multicast Routing

  • MLD v1/V2 Snooping
  • Static
  • LACP (802.3ad)
  • Load Balance (src-mac/ dst-mac/src-ip/dst-ip)
  • Max group and ports per group

Redundancy Related Function

  • Compatible ERRP
  • Uplink Protection Protocol
  • Smart Link/Monitor Link
  • Uplink State Monitor

802.1x

  • Port-Based Authentication
  • Support EAPoR
  • MAC-based Authentication
  • Guest VLAN

MAC Address Count Limit

  • Based on Port
  • Based on VLAN

Deny Dos Attack

  • TCP Flag
  • TCP Flagment
  • IP Segment
  • ICMP

MAB

  • Based on Port Authentication
  • Based on MAC Authentication
  • UL 60950
  • EN 55022 Class A/B or CISPR22 Class A/B
  • Electromagnetic Compatibility (EMC)
  • Standards ISO 9001:2015
Download Datasheet

Inside box
you get

1x

Jupiter E08ZI

1x

Clams

1X

Power Adaptor
