XGS-8P

Mars-XGS-8P

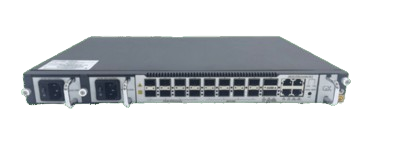

The MOLT-XGS-08P is an advanced 1U XGSPON OLT that supports GPON, XGPON, and XGSPON.
It features 8 Combo PON ports and 2x 100G QSFP28 uplink ports. It offers 10Gbps end-to-end service, a 720 Gbps switch capacity ,
and supports comprehensive security (802.1X, SSH 2.0, IP Source Guard) and QoS with SP/WRR/SP+WRR scheduling

4-Port GPON OLT: Simple Setup, OMCI Remote Management, Unmatched Reliability.
4-Port GPON OLT: Simple Setup, OMCI Remote Management, Unmatched Reliability.
4-Port GPON OLT: Simple Setup, OMCI Remote Management, Unmatched Reliability.
4-Port GPON OLT: Simple Setup, OMCI Remote Management, Unmatched Reliability.
Recycled ABS

Enjoy Ultra-fast speeds

Mbps*
0

Carrier-Class Reliability, Defined

The internationally certified OLT meeting ITU-T G.984/G.988 standards. It features 1+1 Power Redundancy and Type B PON Protection

FTTH Performance, Simplified

A high-capacity 1RU unit with 4x PON ports accessing up to 128 terminals. Full remote management via OMCI and flexible connectivity with 10G SFP ports
ePA Boost

Engineered with an advanced power amplifier for next-level Wi-Fi performance

4x GE Ports
1x USB Port
1x RJ11 Port
Create a better network space

With congestion-free WI-Fi 6 network

Quick Highlights

View Full Specifications

Carrier-Class Security

Complies with all major ITU-T standards, featuring a Unified Multi-service Platform with Dual Main Controllers.

Power Hot Backup

Equipped with Dual Redundant Power Supplies (AC+DC or DC+DC options) for high availability and continuous operation.

High-Capacity  Access

Supports up to 32x XG(S)PON Combo ports via plug-in line cards within a space-saving 2U chassis.

10 Gigabit Bandwidth

Delivers symmetrical 10Gbps downstream and 10Gbps upstream (XGSPON) per port, with up to 1280 Gbps switching capacity.

Remote OMCI Management

Uses standard OMCI Remote Management for configuration, alongside CLI, WEB, and SNMP V3 for flexible network control.

Flexible Uplink Ports

The control board offers high-speed aggregation with 4x 10GE/GE SFP+ ports and 2x 100G QSFP28 ports.

Model No. MOLT-XGS-08P

Technical Specifications

Dimensions
440mm(L)x 270mm(W) x 44mm(D)

Weight
≤ 6.5 kg

Power supply voltage
AC: 100 V AC～240 V AC
DC: -36 V DC～ -75 V DC

Power consumption
 90 W

Switching capacity
720 Gbps

Forward capacity
536 Mpps

Operating temperature
-10 to 55 °C

Storage temperature
-40 to 70 °C

Relative humidity
10 to 90%, non-condensing

GPON SoC  :
BCM68658

Switch SOC :
BCM88470

RAM
4Gb

ROM
8Gb

PORTS
8x GPON / XGPON/XGSPON Combo Ports
4x 10G 2x 100g QSFP
AUX / Console Port

Type B Protection
Yes

Mac support
64K+

  • Support N1/N2/E2 XG-PON or XGS-PON
    optical module
  • SN / SN+Password ONU authentication,
    FEC
  • ONU Digital Diagnostic Monitor
  • Rogue ONU Detection
  • Support N1/B+, N2/C+, E2/D Combo
    optical modules
  • User hierarchical management and
    password protection
  • IEEE 802.1X authentication/centralized
  • MAC address authentication
  • Radius&TACACS+ authentication
  • MAC address learning number limit,
    support black hole MAC function
  • SSH 2.0, providing a secure encrypted
    channel for user login
  • Line-speed switching & forwarding
  • ONU-based QinQ, 1:1 / N:1 VLAN translation
  • Broadcast / DLF / Unknown Multicast storm control
  • Switch Virtual Interface (SVI) – IPv4/IPv6
  • Protocol-based VLAN, 802.1Q VLAN
  • Standard and extended ACL
  • Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6)
    address, TCP/UDP port number, protocol type, etc
  • Packet filtration of L2~L7 deep to 80 bytes of IP packet head
  • STP/RSTP/MSTP
  • ERPS Ethernet ring network protection
    protocol
  • Loopback-detection port loopback
    detection is supported
  • RSTP/MSTP (recover-time <1s)
  • LACP (recover-time <10ms)
  • Flow speed limit function based on
    custom business flow
  • Packet mirroring and packet redirection based on custom service
    flows
  • Supports priority marking based on a custom service flow.
  • Supports 802.1P priority remark capability.
  • Supports DSCP (Differentiated Services Code Point) priority remark capability.
  •  Prevention of various DOS attacks and virus attacks against the CPU on the control layer
  • ARP flood attack automatic suppression and ARP spoofing protection
  • 1+1 Power hot backup
  • Compliant with ISO 9001 : 201 5, 14001:2015 and 27001:201 5
  •
